model
Berlin

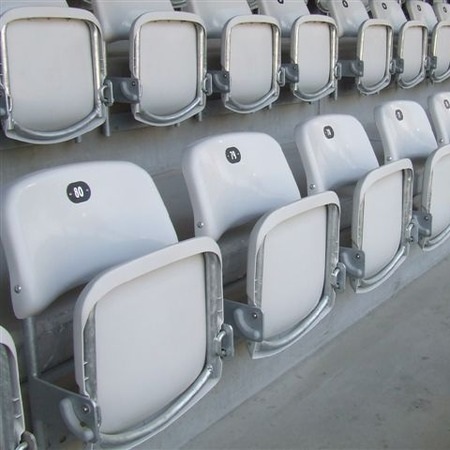

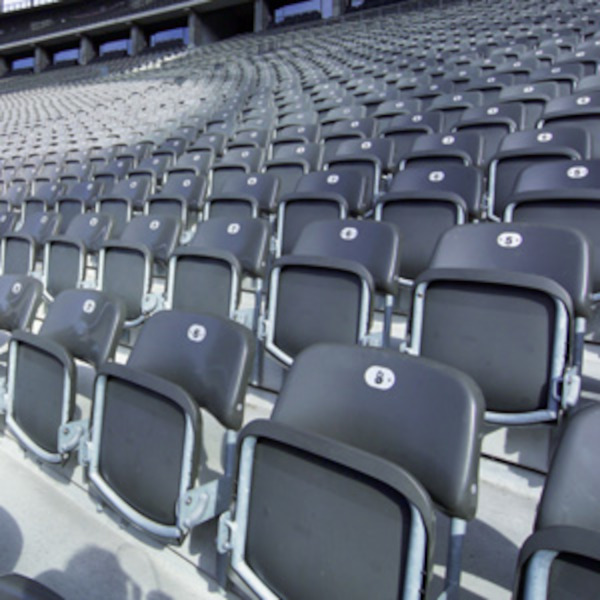

BERLIN :
Stadium and Arena polypropylene injection moulded tip-up seats, with UV and flame-retardant properties. Available in any specified colour. Installed on step or riser with galvanized frames.
Features:
• RAL colours available.
• Seat and back manufactured with Polypropylene.
• Fire retardant according to DIN 4102 B.
• UV resistant with a minimum 5 year warranty.
• Seat numbered.
• Gravity tip.
Dimensions:
• Seat depth = 290mm (folded)
• Seat width = 425mm
• Seat height = 800mmEasy-Sit

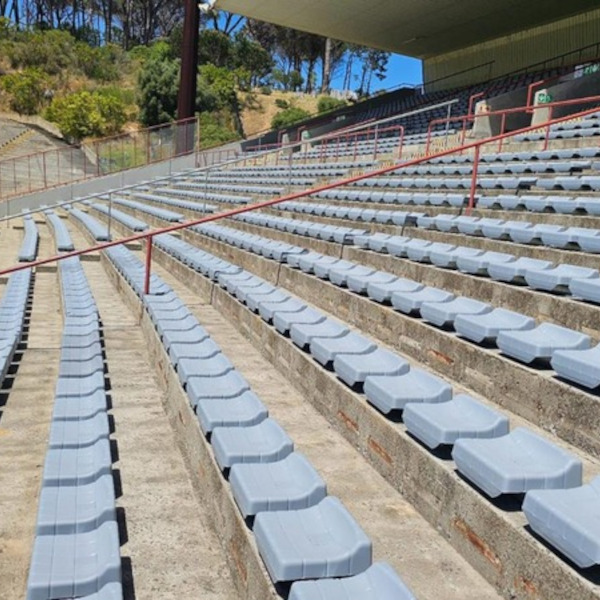

EASY-SIT :
The Rodlin Design Easy- Sit is a compact and durable stadium seating solution, designed as a one-piece molded seat with an integrated mini backrest for ergonomic support. This seat provides efficient space
utilization while ensuring spectator comfort, it is lightweight yet robust, making it ideal for large-scaleinstallations.
Constructed from injection-molded polypropylene, the seat features a double-wall shell reinforced with structural ribs for enhanced strength and durability. The material composition includes 87% virgin-grade
polypropylene and 13% masterbatch pigment with UV stabilizers and optional fire retardant properties with maximum light fastness rating of 8 on a scale of 1 to 8, ensuring resistance to fading. The seat is
designed for long-term outdoor use, with a UV resistance rating of 180 KLy over five years. Available in a range of RAL colors, a minimum order of 500 units per color is required.
The Easy-Sit is designed for direct installation onto concrete steps or a steel beam, providing flexibility in stadium configurations. For enhanced durability in outdoor environments, an optional hot-dip galvanized
steel frame is available. This frame is constructed from 50mm x 50mm square tubing and is installed into concrete using four galvanized M10 x 75mm anchor bolts per beam, ensuring a secure and stable seating
solution.
Warranty - 5 Years
Dimensions:
• Seat depth = 384.5mm
• Seat width = 333.5mm
• Seat height = 117.5mmEcco

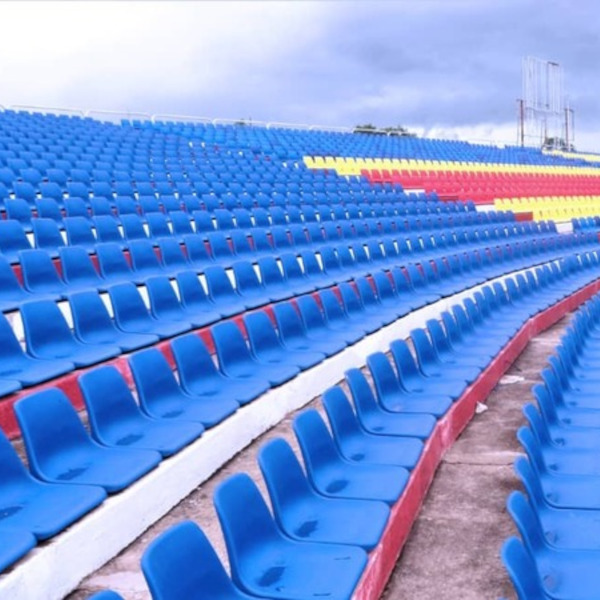

ECCO :
The Rodlin Design Ecco stadium seat is a one-piece, injection-moulded polypropylene seat with an integrated backrest, designed to meet FIFA regulations. The Ecco provides a comfortable and durable
seating solution for stadium environments.
Manufactured from virgin-grade polypropylene with UV stabiliser and optional fire-retardant additives, the Ecco seat is built for longevity in outdoor conditions. With a matt finish, it is available in a range of RAL
colours, with a minimum order of 500 per colour.
The seat is designed for direct installation onto a concrete step or on galvanised steel beams, with the option of seat numbering fixed to the backrest. This frame is constructed from 50mm x 50mm square
tubing and is installed into concrete using four galvanised M10 x 75mm anchor bolts per beam.
Warranty - 2 Years
Dimensions:
• Seat depth = 480mm
• Seat width = 450mm
• Seat height = 380mmRhino

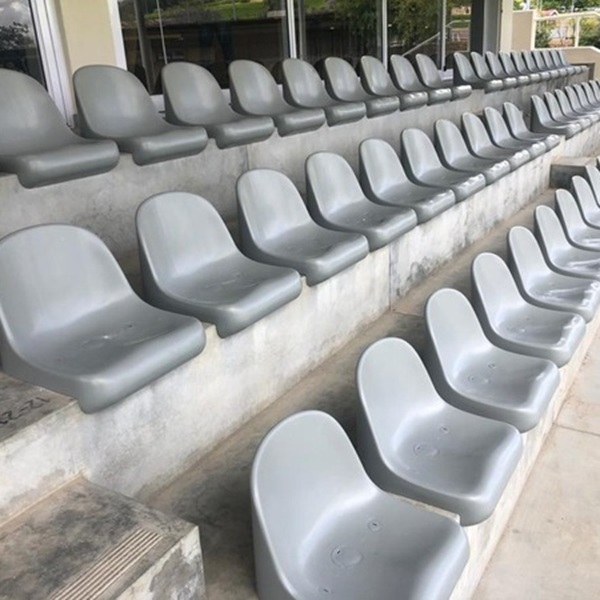

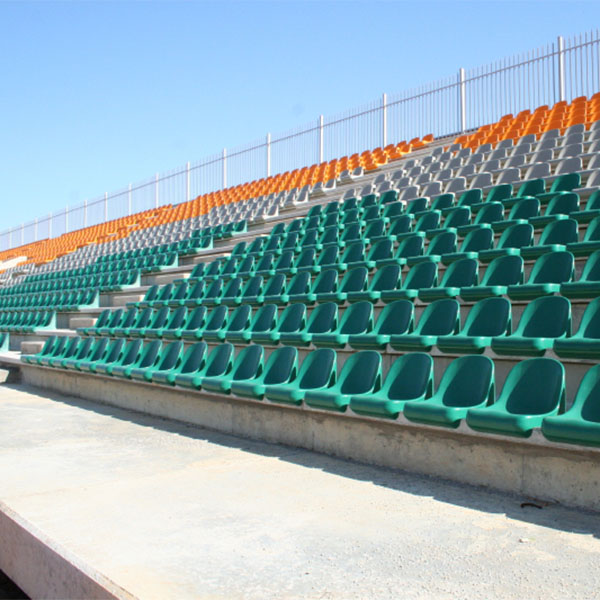

RHINO :
Stadium and Arena polypropylene injection moulded seats, with UV and flame-retardant properties. Available in any specified colour. Installed on galvanized beams or fixed directly to the concrete step.
Features:
• RAL colours available.
• One piece shell with backrest and short nose, fully compliant with FIFA regulations.
• Fixed directly to concrete and is fully enclosed on all sides.
• Injection moulded in high quality stabilized plastic
• 87% Virgin Grade Polypropylene and 13% Master Batch.
• Seat numbering and row lettering is optional.
Dimensions:
• Backrest height = 335mm
• Seat depth = 465mm
• Seat width = 430mm
• Seat height = 460mm
• Chairs fixed at 500mm centresWing VIP

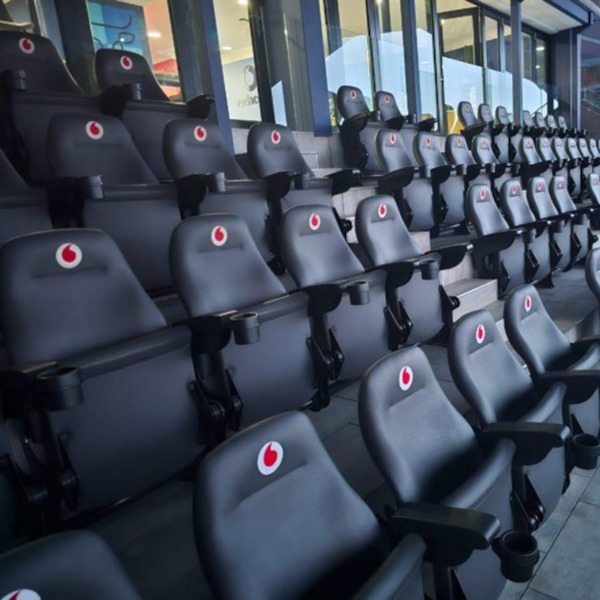

WING VIP :
The Wing VIP Chair is a floor mounted stadium gallery chair designed for durability and comfort. The automatic tip-up seat operates using a zinc alloy die-cast spring-loaded mechanism, tested to SANS
regulations, ensuring a minimum of 200,000 cycles.
The metal sub-frame is black epoxy powder-coated 50mm diameter tube cross-member. All intermediary uprights are laser-cut from 4mm mild steel for precision and structural support. The side support plates
are 5mm, enhancing stability.
For floor fixing, the chairs are anchored to concrete using an M10 x 75mm coach screw and an M12 Fischer SX plug, with a plastic cap covering the bolt head.
Optional add-ons include common armrests in moulded self-skinning polyurethane, seat and row numbering system, print or embossed logo, cupholders and side tables.
Warranty - 3 Years
SANS 1528-1 Compliant
